Transcend @ Body Worn Video Systems

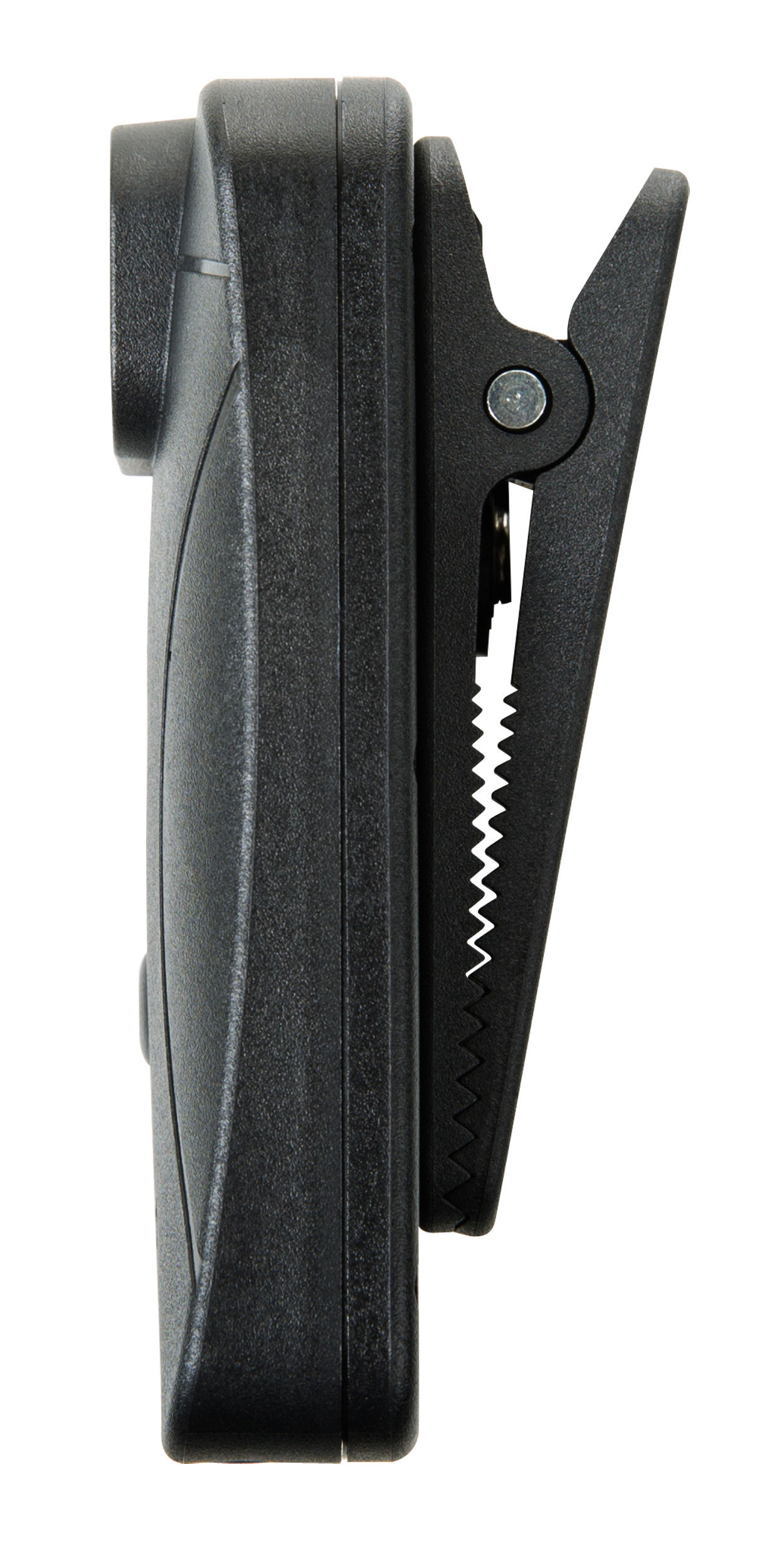

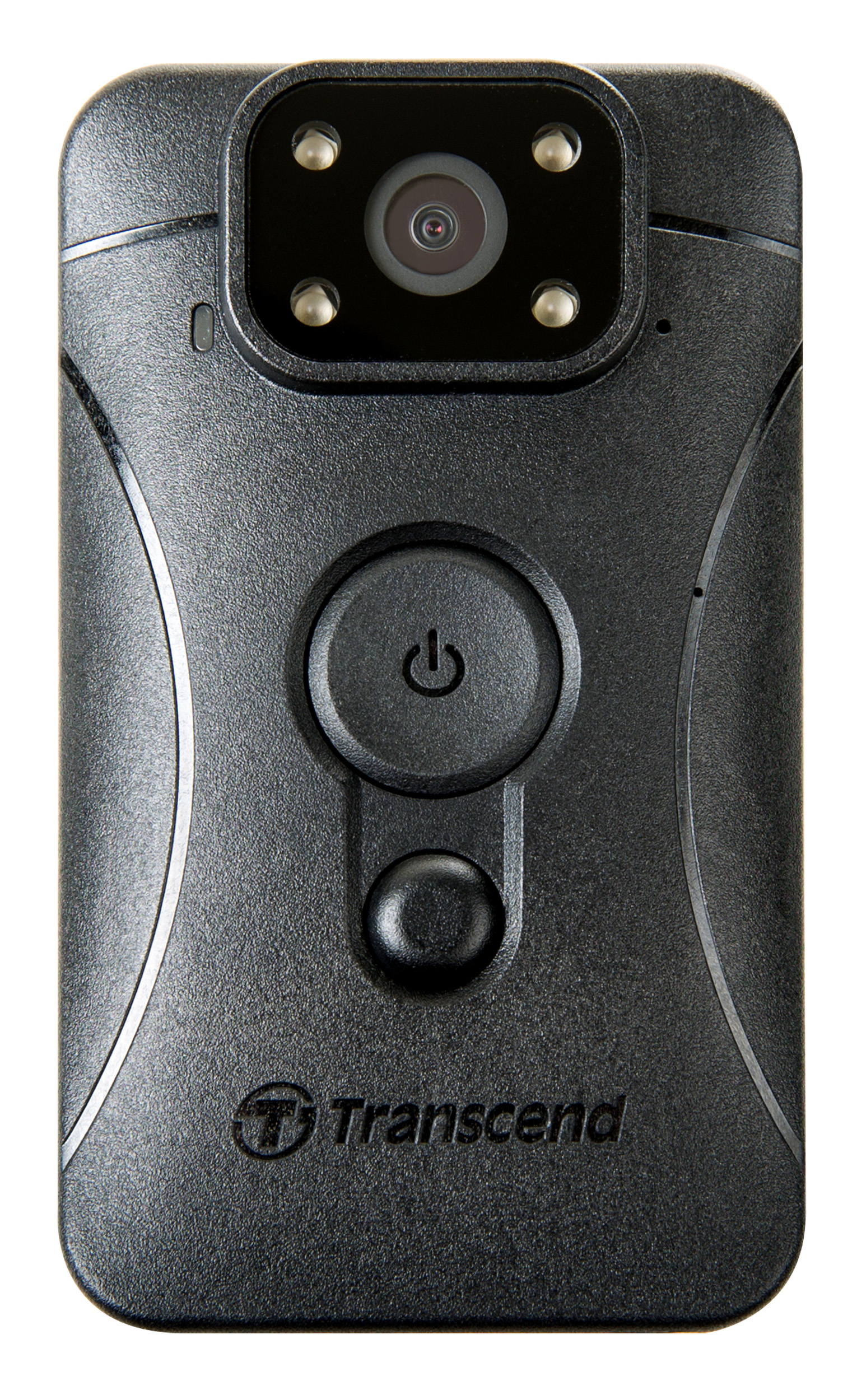

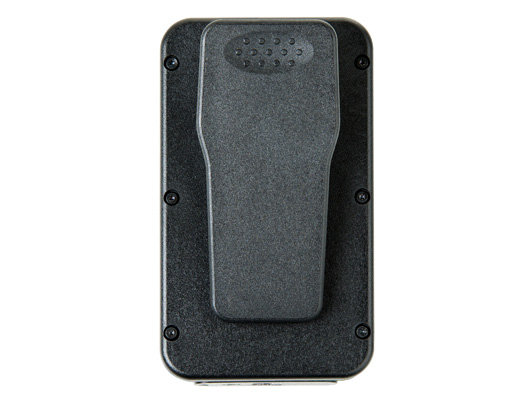

DrivePro Body 10B

Day or night, indoors or outdoors, Transcend's DrivePro Body 10 is the best companion for police officers, security and other professionals. The camera's wide 160° viewing angle, F2.8 aperture lens and Full HD 1080P recordings ensure all the important details of actions are clearly recorded.

The infrared LEDs will be automatically turned on in low light conditions, allowing recording and snapshots to be taken at night. The DrivePro Body 10 also features a built-in battery and excellent water and shock resistance, ideal for indoor and outdoor use. Ideal for door staff and dog handlers.

Specifications

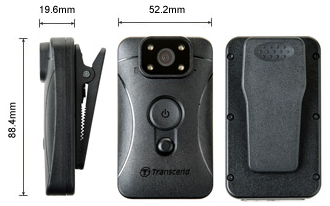

  • Dimensions - 88.4 mm × 52.2 mm × 19.6 mm (3.48 x 2.06 x 0.77 inches)

  • Weight - 108 g (3.81 oz)

  • Lens - F/2.8, 160° wide angle

  • Microphone - Built-in

  • Resolution/Frame rate - Full HD (1920x1080)/30FPS

  • Video Formats = H.264 (MOV: up to 1920x1080 30fps)

  • Memory Card Support - MicroSD card, 8GB/16GB/32GB (Class 6 or above)

  • Warranty - Two-year Limited Warranty

Package Contents:

  • DrivePro Body 10 Camera
  • UK USB Power Plug
  • Micro-USB cable
  • FREE 32GB microSD MLC Memory Card
  • Lanyard
  • Micro SD to USB adapter
  • Camera Reset Tool
  • Toolbox Software & Guidance information CD
  • Instructions

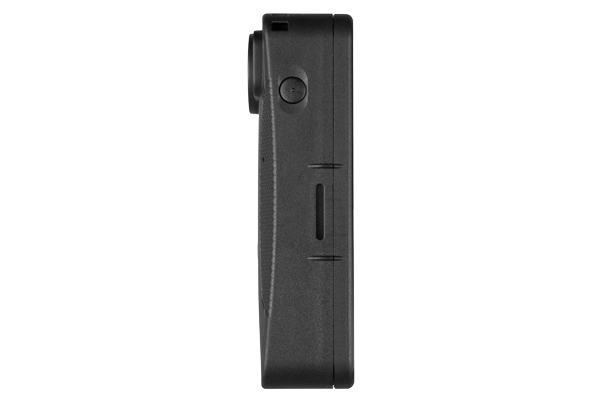

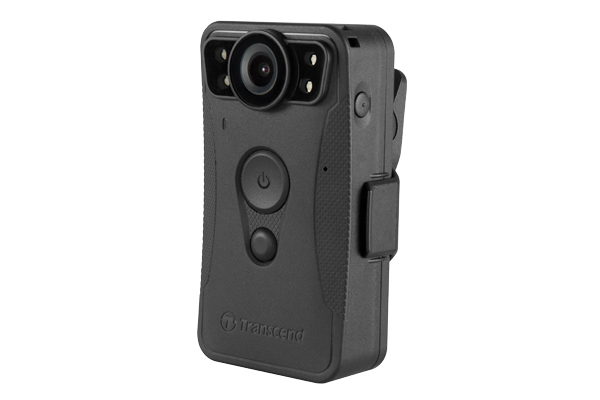

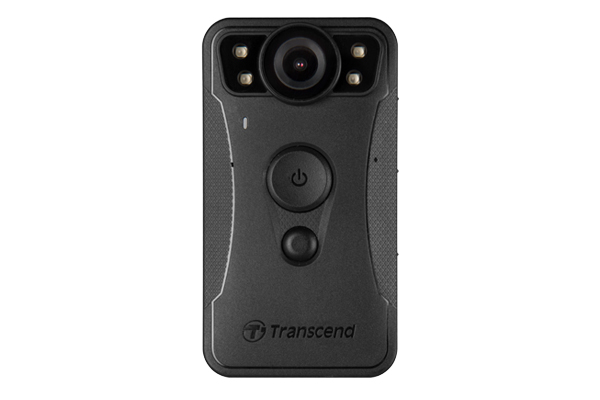

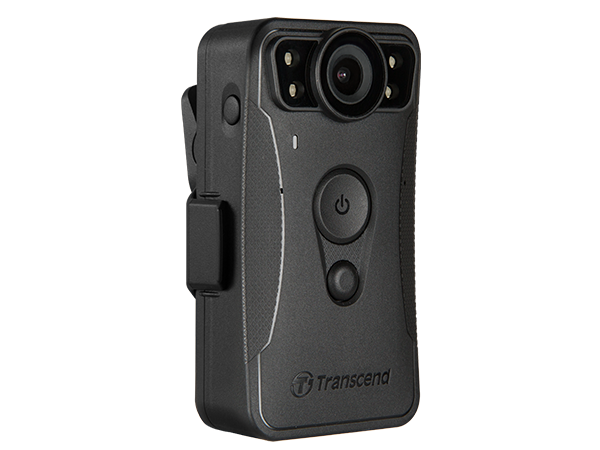

DrivePro Body 30

Transcend’s DrivePro Body 30 is a feature-packed body camera designed specifically for public safety professionals. With a twelve-hour battery life, IP67 rated environmental sealing, military-grade shock resistance, and a pre-event buffer, the DrivePro Body 30 is always ready for action. The Sony image sensor, high-quality lens, automatic infrared illumination, and six-axis image stabilization guarantee clear, high-definition evidence collection. Paired with Transcend’s DrivePro Body App for iOS and Android smartphones, users can easily control the DrivePro Body 30 and manage videos and photos on the device.

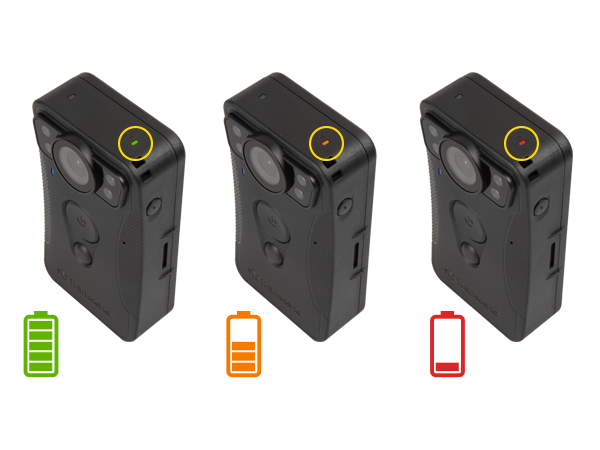

The DrivePro Body 30 has a built-in 3120mAh Li-Polymer battery, allowing up to 12 hours of video recording on a single charge.


It has four infrared LEDs that will automatically turn on in dim light to enhance night vision capabilities. This can drastically increase recording quality in pitch-black darkness.

To minimize blurriness while moving and using the camera, the DrivePro Body 30 features a six-axis MEMS sensor that reduces the effect of motion on the camera.

It features both Bluetooth for basic setup and switching modes, and Wi-Fi connectivity for live streaming videos to iOS and Android mobile devices.

The DrivePro Body 30 features buffering capability that can effectively save storage space and power consumption. When an incident occurs, short press the power button twice. The file being recorded, along with the minimum 30 seconds prior to the incident happens, will then be stored on internal memory.

Specifications

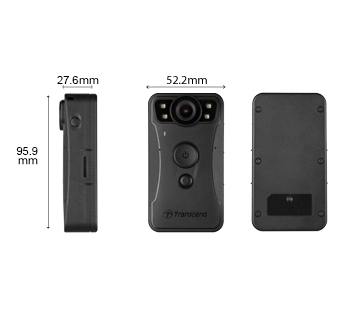

  • Dimensions - 95.9mm × 52.2mm × 27.6mm (3.78" x 2.06" x 1.09")

  • Weight - 130g (4.59 oz)

  • Lens - F/2.0, 130° wide angle

  • Microphone - Built-in

  • Resolution/Frame Rate - Full HD (1920x1080) / 30fps

  • Video Format - H.264 (MOV: up to 1920x1080 30fps)

  • Storage Capacity - 64GB internal memory

  • IP Rating - IP67

  • Warranty - Two-year Limited Warranty

Package Contents:

  • DrivePro Body 30 Camera
  • UK USB Power Plug
  • 3.5mm-USB cable
  • Lanyard
  • Camera Reset Tool
  • Toolbox Software & Guidance information CD
  • Instructions

DrivePro Body 60

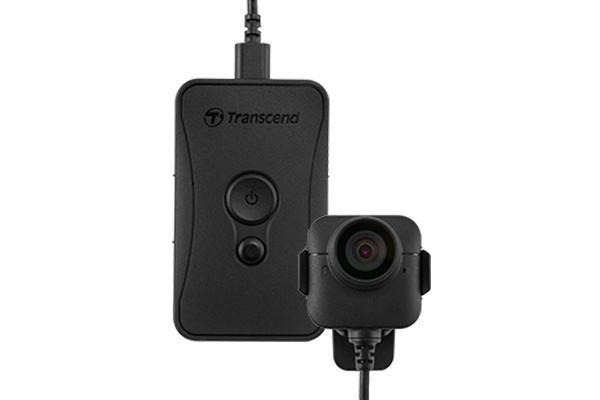

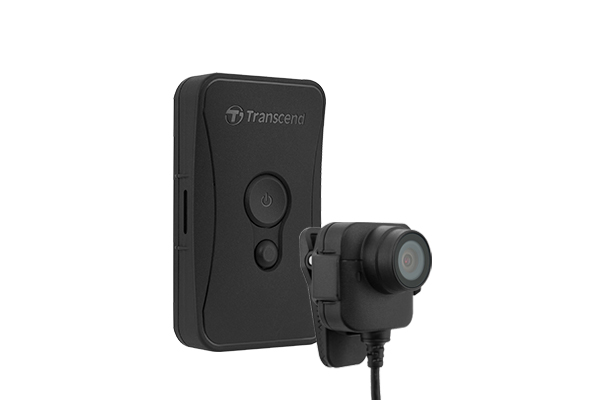

Transcend's DrivePro Body 52 body camera features a camera unit connected to the main unit by a flexible cable, allowing for a wide variety of attachment options. Tailor-made for law enforcement, private security, and other professionals, the DrivePro Body 52 is rugged and durable to withstand splashing water and shock. The camera features a Sony image sensor to capture high-resolution images with extremely fine tonal gradation even in low light. With built-in Wi-Fi, the DrivePro Body 52 allows users to live-stream footage and snapshots to iOS and Android mobile devices.

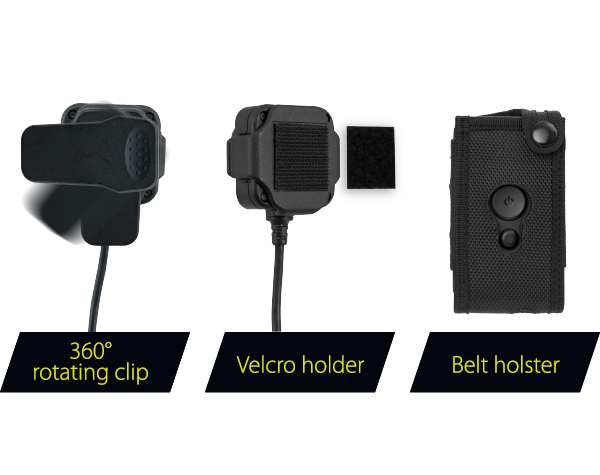

All necessary mounting accessories are included with the DrivePro Body 52. Officers can choose to use either the 360° rotating clip or Velcro holder to mount the camera unit on their uniform or jacket, and use the belt holster to carry the main unit on their duty belt. Klick Fast optional.

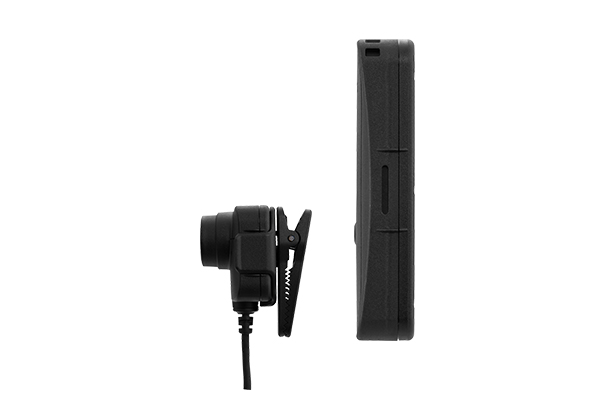

The DrivePro Body 52 is comprised of a main unit and a separate, compact camera unit which can be securely mounted on uniforms or jackets. The camera features a wide 130° horizontal field of view, a large ƒ/1.8 aperture, and a Sony image sensor for high-resolution images with superb, rich color even in low light.

Specifications

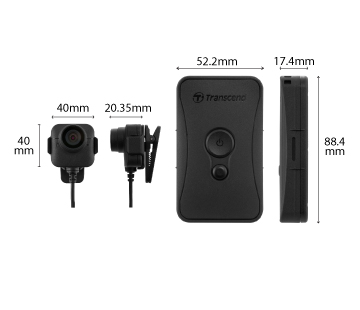

  • Dimensions - Body: 88.4mm × 52.2mm × 17.4mm (3.48" x 2.06" x 0.68")
                          - Camera: 40mm × 40mm × 20.35mm (1.57" x 1.57" x 0.80")
  • Weight          - Body: 88g (3.10 oz)
                          - Camera: 56g (1.98 oz)
  • Lens - F/1.8, 130° wide angle
  • Microphone - Built-in
  • Resolution/Frame Rate - Full HD (1920x1080) / 30fps
  • Video Format - H.264 (MOV: up to 1920x1080 30fps)
  • Storage Capacity - 32GB internal memory
  • IP Rating - IPX4
  • Warranty - Two-year Limited Warranty

Package Contents:

  • DrivePro Body 52
  • 3.5mm to USB cable
  • 360° rotatable clip
  • Velcro holder
  • Belt pouch
  • UK USB Power Plug
  • Camera Reset Tool
  • Toolbox Software & Guidance information CD
  • Instructions

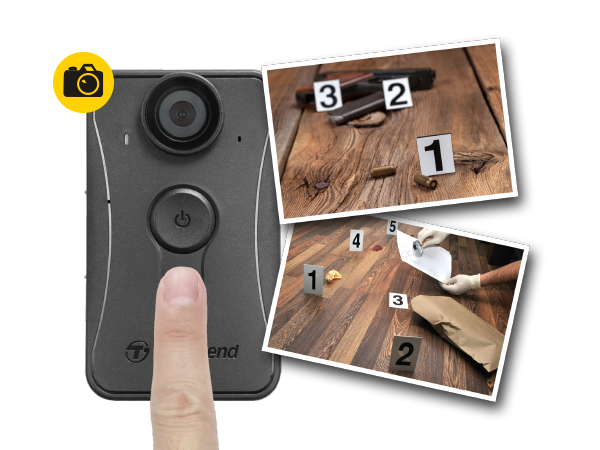

Handy Snapshot Button

The handy snapshot feature allows you to take photos while recording video.

During an incident, just press the snapshot button to capture the irrefutable evidence on the spot.

*Snapshots taken with infrared LED will be in grayscale.

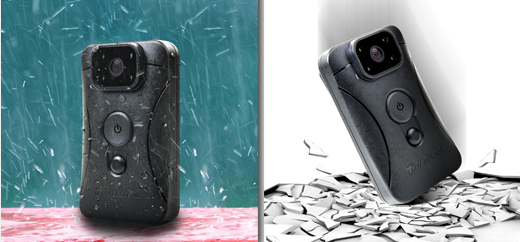

Optimum Outdoor Protection

The rugged DrivePro Body Cameras provides excellent protection for outdoor recording. The IPX4 (minimum) water resistant feature offers protection against splashing water from any direction. The DrivePro Body also offers great shock resistance, meeting the rigorous U.S. military drop-test standards*.

*Based on MIL-STD-810G 516.6-Transit Drop Test.

Free 32GB microSDHC  Memory Card Included

As each DrivePro Body Camera includes a 32GB microSDHC memory card that can record up to 240 minutes of Full HD video, there is no need to worry about storage capacity. Built with top-tier MLC NAND flash chips, the Transcend's 32GB microSDHC memory card provides consistent long-life durability and endurance.

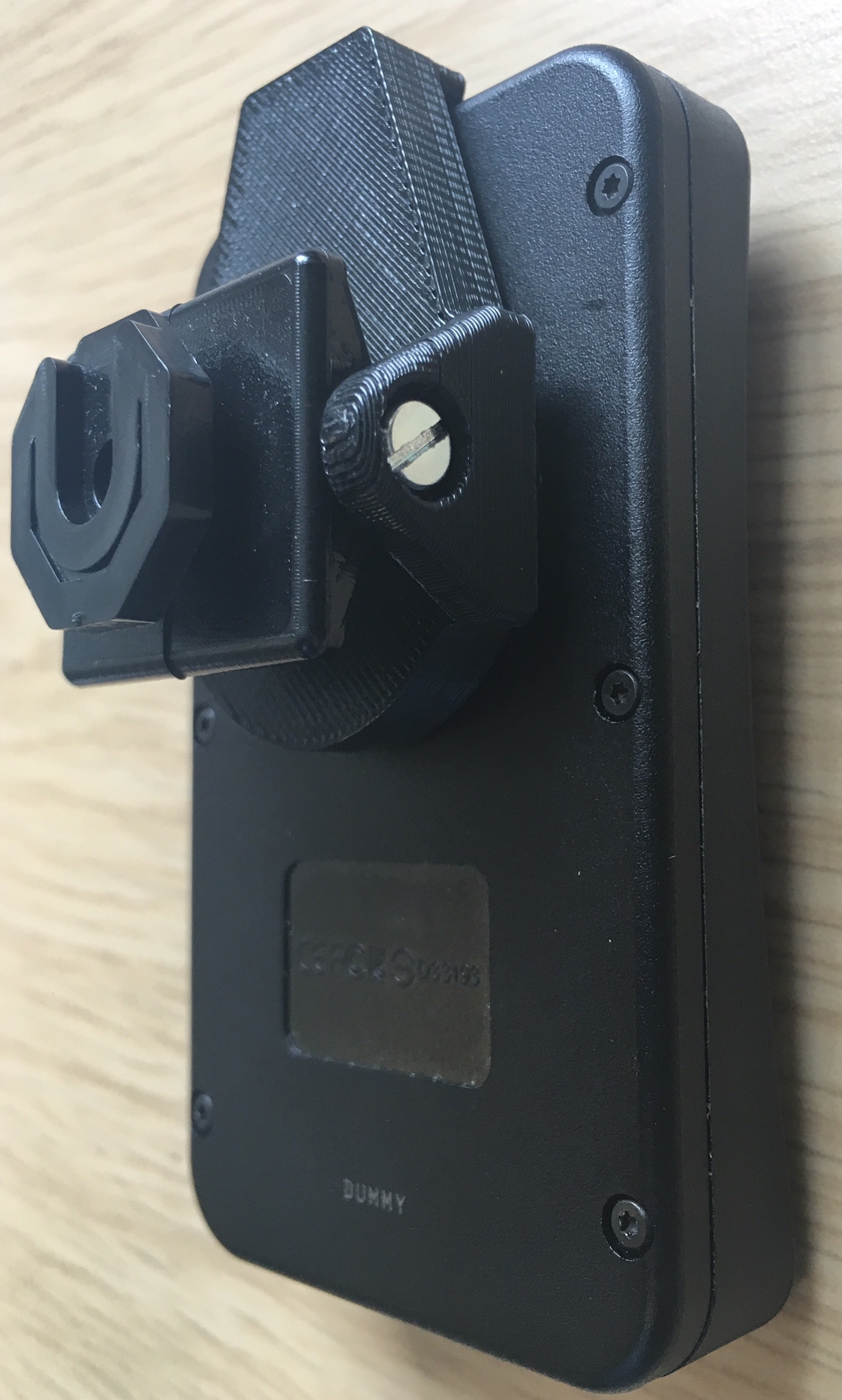

Klick Fast Compatible

We have worked with Peter Jones ILG to supply a mount to allow the Transcend body worn cameras to join the Klick Fast system. The custom hinge joint in our Swivel Mount allows the camera to be oriented up or down to ensure you have the optimum angle for capture.  This and other Klick Fast studs are fully compatible with all Klick Fast docks, including the retro fitting DOCK08, and the new magnetic mount.

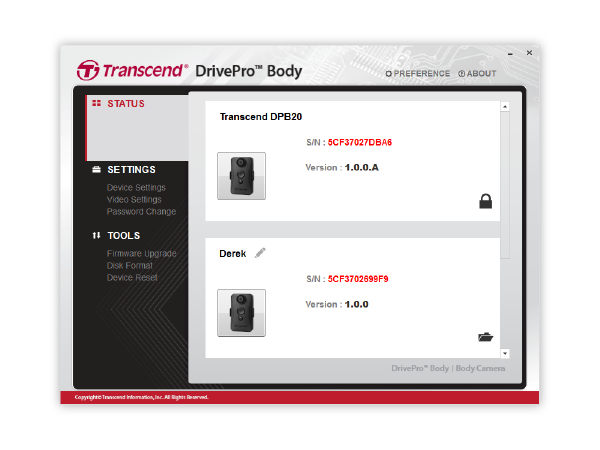

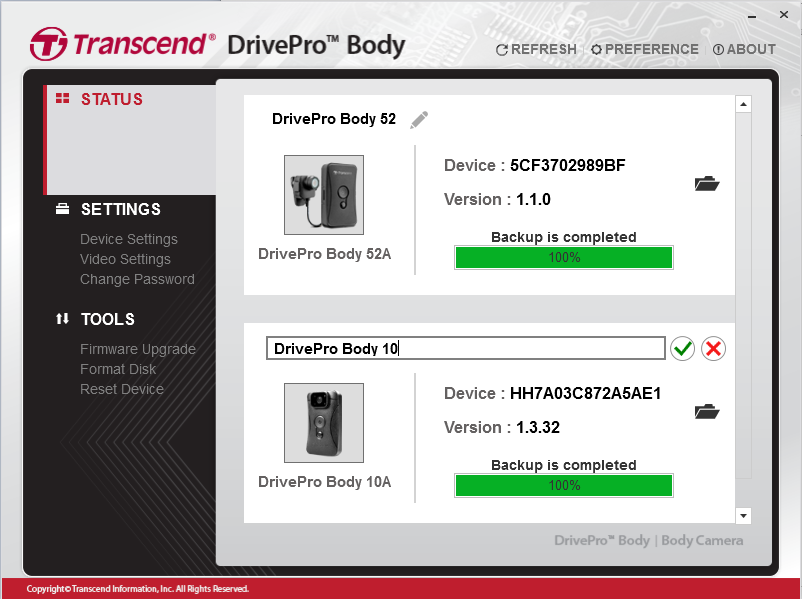

DrivePro Body Toolbox Software

Transcend's DrivePro Body Toolbox is exclusively designed for the DrivePro Body series, featuring a user-friendly interface that allows users to securely manage recorded videos and snapshots on Windows PCs. With the Toolbox, users can adjust settings for both the Toolbox and the DrivePro Body device, format internal storage, and upgrade the body camera's firmware.

System Requirements For connecting the DrivePro Body Camera to a computer:
Desktop or notebook computer with USB port and one of the following Operating Systems:

  • Microsoft Windows 7
  • Microsoft Windows 8
  • Microsoft Windows 8.1
  • Microsoft Windows 10
  • Mac OS X 10.8.2 or later

For using the DrivePro Body Toolbox Software:

  • Microsoft Windows 7
  • Microsoft Windows 8
  • Microsoft Windows 8.1
  • Microsoft Windows 10

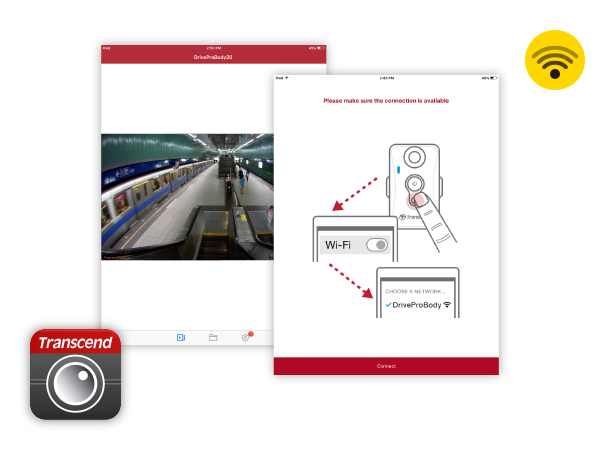

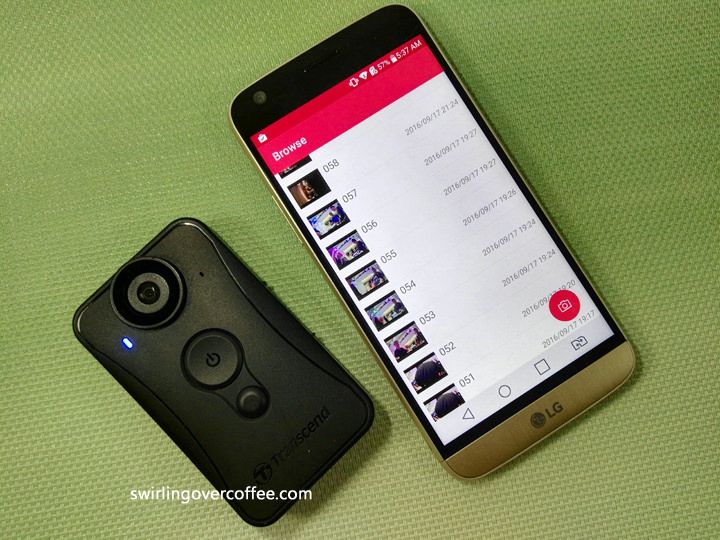

DrivePro Body Mobile App

Specifically designed for Transcend DrivePro Body body cameras (20, 52, 30 only), the DrivePro Body App is a handy utility for users to adjust camera settings and access recorded footage and snapshots right away. To prevent evidence from being tampered with, the DrivePro Body App allows users to embed every recording and snapshot with a clearly visible user ID and timestamp.

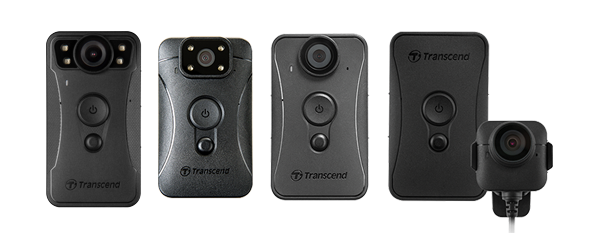

Camera Comparison

DrivePro Body Docking Stations and USB hubs

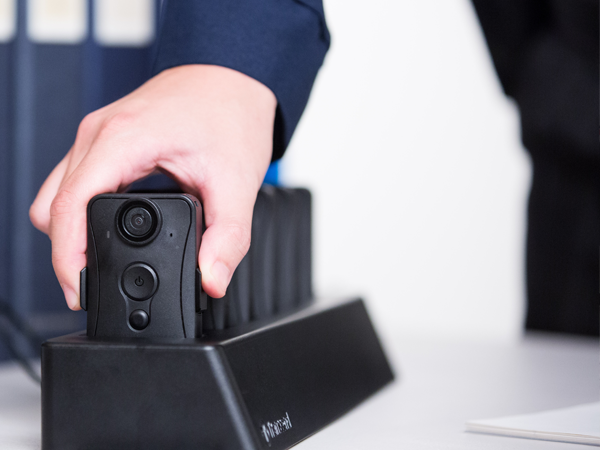

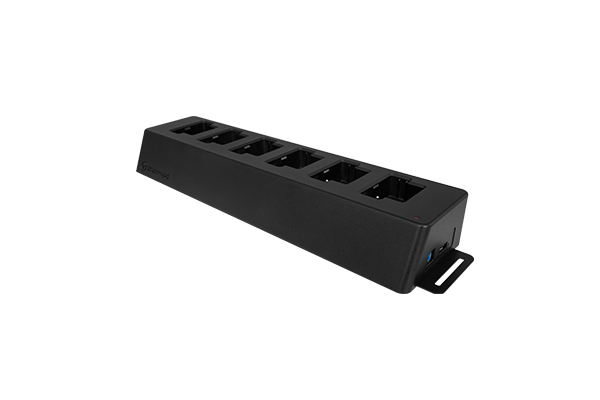

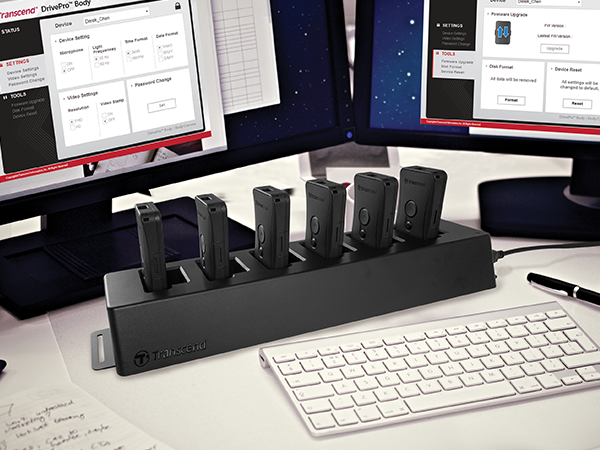

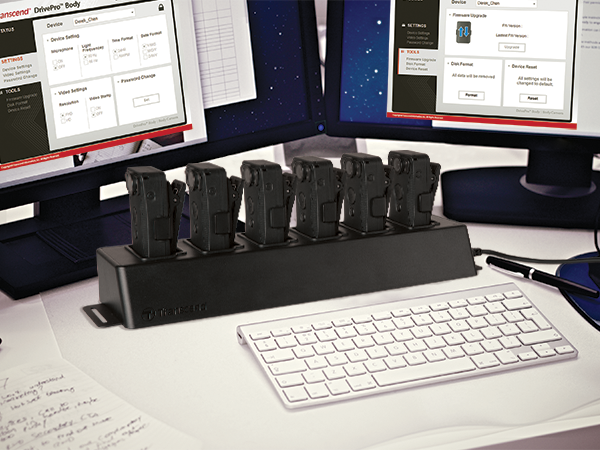

Docking Station (TS-DPD6P)

Exclusively designed for the DrivePro Body 20 and DrivePro Body 52 body cameras, Transcend's 6-port docking station is equipped with six charging and data upload ports, and can be daisy-chained with up to two additional docking stations to allow up to eighteen DrivePro Body series body cameras to charge and upload data at the same time. The docking station is also equipped with an auto backup function that works while recharging is taking place.

Docking Station (TS-DPD6N)

Designed exclusively for Transcend's DrivePro Body 30 body camera, Transcend's TS-DPD6N docking station offers a complete camera management, charging, and data upload solution. The six-port docking station is network-based, providing two Ethernet ports for scalability and fast deployment. A LAN port is used for administrative setup, whereas a WAN port is for data upload to a designated folder while charging. A USB 3.0 port is also included for storing video recordings and snapshots to external storage devices.

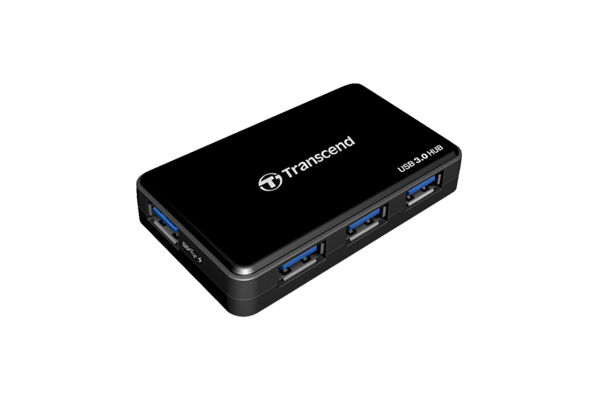

USB Hub (HUB3)

Adapted for use with Transcend's DrivePro Body camera, Transcend's SuperSpeed USB 3.0 Hub transforms a single USB 3.0 port into four, instantly expanding the number of cameras you can connect to your computer at the same time. With the included power adapter, the Hub3 can supply high output currents of up to 2A via its dedicated fast charging port. This allows the body cameras and other portable devices with demanding power requirements to charge much quicker than using a standard USB port.
